High Ambient Air-Cooled Scroll Industrial Chiller

MOQ: 1
Price: USD
Standard Packaging: woodern box
Delivery Period: 35days
Payment Method: L/C,T/T
Supply Capacity: 400pcs/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bosikar
Certification
ISO
Condenser Type:
Air-cooled With Enhanced Fin Design
Noise Level:
Low Noise Operation, Typically Below 70 DB(A)
Compressor Type:
Scroll Compressors
Operating Temperaturer Ange:
Up To 55°C Ambient Temperature
Refrigerant Type:
R134a
Protection Features:
Overload Protection, Phase Failure Protection, And High-pressure Cut-out
Product Name:
High Ambient Chillers
Product Description

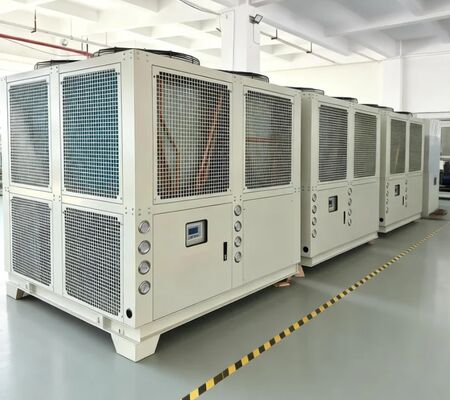

BOSIKAR High Ambient Air-Cooled Scroll Industrial Chiller



Designed for Extreme High Ambient Conditions




With the rapid development of industries in the Middle East, Africa, and Southeast Asia, stable cooling systems have become increasingly important. Conventional chillers often suffer from high-pressure alarms, cooling capacity reduction, and unstable operation under extreme ambient temperatures.



BOSIKAR High Ambient Air-Cooled Scroll Industrial Chillers are specially engineered for harsh environments. Equipped with world-class scroll compressors, oversized condensers, and intelligent control systems, they provide reliable and efficient cooling even under ambient temperatures up to 55°C.


Technical data sheet(R134a)


AIR-COOLED SCROLL CHILLERS
                        Model                           Parameter BSK-10A BSK-12A BSK-15AD BSK-20AD BSK-25AD BSK-30AT BSK-40AF BSK-50AF BSK-60AF
Nominal cooling capacity Kcal/h 24,940 31,820 36,980 49,880 62,780 86,000 104,060 125,560 170,280
kW 29 37 43 58 73 100 121 146 198
TR 8.2  10.5  12.2  16.5  20.8  28.4  34.4  41.5  56.3
Total input power(kW) 10.17 12.58 14.98 21.08 25.52 33.5 43.75 49.04 65
Available Power Supply 3Ph / 380V / 60Hz, 440V / 60Hz, 460V / 60Hz, 480V / 60Hz
Refrigerant Type  R134a
Control method Thermal expansion valve
Compressor Type Hermetic scroll
Power(kW) 8.5  10.2  11.7  17.1  20.3  28.3  36.0  40.6  56.6
Evaporator Type Shell and tube
Water flow(m³/h) 5  6  8  11  12  16  21  24  30
Condenser Type Enlarged Air-Cooled Condenser with Inner-Grooved Copper Tubes and Hydrophilic Aluminum Fins
Fan Type High Efficiency Axial Fan
Power(kW) 0.92 0.92 1.8 1.8 3 3 4 4.4 4.4
Air flow(m³/h) 11,000 13,200 16,500 25,000 25,000 35,000 48,000 56,000 65,000
Water tank Volume (L) 85 85 150 200 200 200 280 400 400
Water pump  Power(kW) 0.75 1.5 1.5 2.2 2.2 2.2 3.75 4 4
Water flow(m³/h) 8 12 12 20 20 25 25 30 40
Inlet/Outlet pipes 1-1/2" 1-1/2" 2" 2-1/2" 2-1/2" 2-1/2" 3" 3" 3″
Dimension Length(mm) 1600 1800 1800 1900 1900 2200 2450 2450 2700
Width(mm) 780 830 900 990 990 1200 1560 2000 2000
Height(mm) 1530 1600 1700 2050 2050 1810 1850 2000 2000
Net weight kg 450 550 650 900 1000 1200 1350 1500 1950
The cooling capacity is calculated based on chilled water inlet/outlet temperatures: 17℃ and 12℃, outside air temperature 35°C.



Product Features



  • High Ambient Temperature Design


Specially optimized for high-temperature regions such as the Middle East and Africa, ensuring reliable operation under ambient temperatures up to 55°C.


  • Oversized condenser
  • High-efficiency finned heat exchanger
  • High-airflow, low-noise axial fan
  • Optimized refrigeration circuit design


  • World-Class Scroll Compressor


The world-renowned compressors provide high efficiency, low noise, and outstanding reliability for continuous industrial operation.


  • Environmentally Friendly R134a Refrigerant


  • Low operating pressure
  • Safe and stableHigh refrigeration efficiency
  • No ozone layer depletion
  • Complies with international environmental standards


R134a refrigerant offers excellent thermodynamic performance and complies with international environmental regulations.


  • Precise Temperature Control


The intelligent controller provides precise temperature control and easy operation.


  • Energy Saving and High Efficiency


Energy-efficient design helps reduce electricity consumption and maximize operating efficiency.



Advantages


  • High Ambient DesignR134a Refrigerant
  • Energy Saving
  • Precise Temperature Control
  • Easy Installation
  • No Cooling Tower
  • RequiredStable Operation
  • Easy Maintenance
  • Customized Voltage Available



BOSIKAR Industrial Cooling Solutions

BOSIKAR specializes in industrial cooling systems and provides high ambient air-cooled and water-cooled chillers for customers worldwide.
