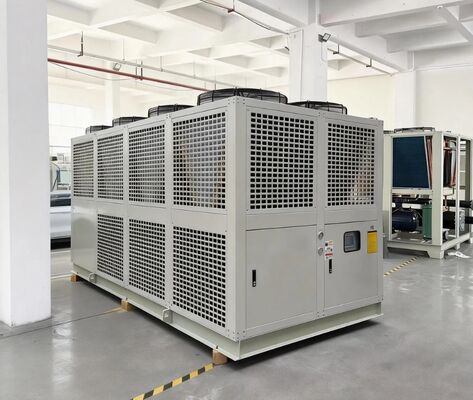

High Ambient Air-Cooled Screw Chiller

Products

Air Cooled Scroll Type Chiller

Water Cooled Scroll Type Chiller

Water Cooled Screw Type Chiller

High Ambient Air-Cooled Screw Chiller

MOQ:	1
Standard Packaging:	wooden box
Delivery Period:	35days
Payment Method:	T/T,L/C
Supply Capacity:	400pcs/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bosikar

Certification

ISO

Compressor Type:

Screw Compressors

Refrigerant Type:

R134a

Operating Ambient Temperature:

Up To 55°C (131°F)

Product Name:

High Ambient Chillers

Condenser Type:

Air-cooled With Enhanced Fin Design

Product Description

Industrial Cooling Solution Built for Harsh Environments

Designed for harsh industrial environments, BOSIKAR High Ambient Air-Cooled Screw Chillers deliver dependable cooling performance even under ambient temperatures up to 50°C, ensuring uninterrupted production and maximum reliability.

Stability is the Key

Continuous Operation 24/7
Reliable Performance
Long Service Life

Optimized for Hot Climate Regions

Oversized Condenser
High Airflow Fans
Optimized Refrigeration Circuit
Intelligent Condensing Pressure Control

Advanced Screw Compressor Technology

High Cooling Capacity
Low VibrationLow Noise
Smooth Operation
Excellent Reliability

Intelligent Control Platform

Real-Time Monitoring
Automatic Fault
DiagnosisHistorical
Data Storage
Remote Communication
Multi-Chiller Control

Technical data sheet(R134a)-Air Cooled Screw Chiller

Model Parameter			BSKS-040A	BSKS-050A	BSKS-060A	BSKS-070A	BSKS-080A	BSKS-100A	BSKS-120A
Nominal cooling capacity		Kcal/h	86,000	114,380	122,980	159,530	193,500	249,400	309,600
		kW	100	133	143	186	225	290	360
		TR	28	38	41	53	64	82	102
Total input power		kW	32.5	40.9	46.7	60.0	69.0	84.6	104.2
Max.runing current		A	74	93	106	137	157	193	237
Nominal power supply			3Ph / 380V / 60Hz, 440V / 60Hz, 460V / 60Hz, 480V / 60Hz
Refrigerant	Type		R134a
Refrigerant	Control mode		Thermal expansion valve
Compressor	Type		Semi-Hermetic screw type
	Power(kW)		28.5	35.5	40.1	51.4	60.4	75.0	94.6
	Start-up mode		Y-△
	Capacity control(%)		0-33-66-100		0-25-50-75-100
Evaporator	Type		Shell and tube
Evaporator	Chilled water flow(m³/h)		17	23	25	32	39	50	62
Condenser	Type		Enlarged Air-Cooled Condenser with Inner-Grooved Copper Tubes and Hydrophilic Aluminum Fins
Fan	Type		High Efficiency Axial Fan
	Air flow(m³/h)		42,000	54,000	66,000	84,000	96,000	108,000	121,000
	Power(kW)		4	5.4	6.6	8.6	8.6	9.6	9.6
Inlet/Outlet pipes			3"	3"	3"	4"	4	4"	5"
Dimension	L	mm	2100	2250	2250	2800	3400	3800	4400
	W	mm	1450	1450	2150	2170	2070	2100	2070
	H	mm	1850	1950	2250	2250	2100	2200	2300
Net weight		kg	1350	1680	2000	2200	2500	2840	3000
