60HP water screw type chiller

water cooled screw type chiller
January 15, 2026
Category Connection: Water Cooled Screw Type Chiller
Chat Now Contact Us
Tags:
#industrial water cooled chiller #200HP water cooled chiller for beverage factory #commercial facility water cooled chiller
Brief: Join us for a close-up look at the 60 HP Water Cooled Screw Type Chiller and see it in action. This video provides a detailed walkthrough of its high-reliability design, advanced PLC control system, and robust safety features. You'll learn how this industrial chiller delivers precise temperature control for manufacturing and commercial applications, ensuring improved efficiency and product quality.
Related Product Features:
  • Delivers a nominal cooling capacity of 201.6 kW, suitable for demanding industrial and commercial cooling needs.
  • Features a semi-hermetic screw compressor for stable, reliable operation with low failure rates and long service life.
  • Utilizes a Siemens PLC and touch screen interface for easy operation and precise microcomputer control.
  • Equipped with multiple safety protections including phase sequence, flow, high/low pressure, and overheating protection.
  • Constructed with a durable shell and tube evaporator and condenser, available with high-efficiency copper or stainless steel tubes.
  • Offers energy-saving capacity control with adjustable stages from 0 to 100% for optimized performance.
  • Provides a water temperature control range from 5°C to 30°C with an accuracy of ±2°C for precise process cooling.
  • Designed for applications in injection molding, blow molding, extrusion, beverage filling, and metal finishing.
FAQs:
  • What are the key advantages of using a screw compressor in this chiller?
    The screw compressor offers a simple structure, large cooling capacity, and high energy efficiency. It lacks the vulnerable parts found in piston compressors, resulting in more stable operation, lower failure rates, longer service life, and easier, cost-saving maintenance.
  • How does this water-cooled chiller differ from an air-cooled chiller?
    This water-cooled chiller uses water from an external cooling tower to condense the refrigerant, making it highly efficient. Air-cooled chillers use fans to dissipate heat into the ambient air. Water-cooled models are ideal where water supply is sufficient, while air-cooled units may be preferred in areas with water shortages.
  • What after-sales support and service does the manufacturer provide?
    The manufacturer offers 12 months of free maintenance, technical explanations, debugging support, training, and maintenance guidance. If needed, on-site service by after-sales engineers or local dealers is available, along with quick provision of necessary parts to ensure continuous operation.
Related Videos
140hp water screw chiller with double compressors 00:14

140hp water screw chiller with double compressors
water cooled screw type chiller
January 15, 2026
120hp water cooled screw type chiller with two compressors 00:14

120hp water cooled screw type chiller with two compressors
water cooled screw type chiller
January 15, 2026

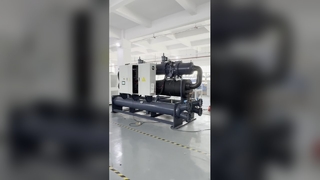

100hp water cooled screw chiller with double compressors 00:14

100hp water cooled screw chiller with double compressors
water cooled screw type chiller
January 15, 2026
15hp air cooled scroll type chiller 00:35

15hp air cooled scroll type chiller
Air Cooled Scroll Type Chiller
January 21, 2026
Air cooled chiller 00:07

Air cooled chiller

Air Cooled Scroll Type Chiller
January 15, 2026

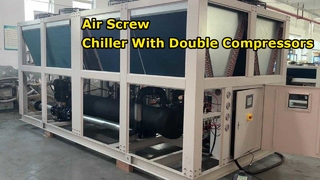

Air Cooled Screw Solutions With Double Compressors 00:20

Air Cooled Screw Solutions With Double Compressors
Air Cooled Screw Type Chiller
December 31, 2025

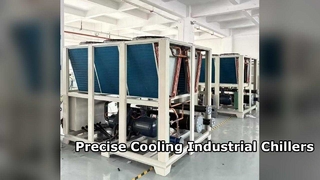

chiller 00:10

chiller
Other Videos
January 14, 2026

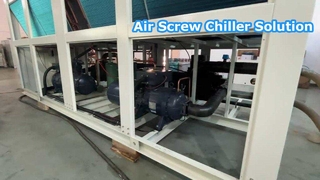

Air Cooled Screw Chiller Efficiency 00:12

Air Cooled Screw Chiller Efficiency
Air Cooled Screw Type Chiller
December 31, 2025
60hp water cooled screw type chiller unit 00:39

60hp water cooled screw type chiller unit
Other Videos
January 12, 2026

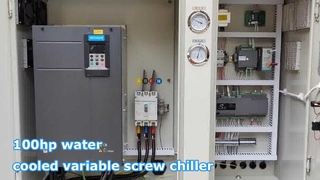

100hp water cooled variable screw type chiller unit 00:39
